製品案内 products
- プッシュプル
- 2サイズ
- 2～34ピン
- >2000回の嵌合サイクル
- PSU動作温度-50°C~150°C
- PEI 作業温度-50°C~170°C
- はんだ&DIPコンタクト
- 定格電流2~10A
- 7色
- 6つのキー溝
- IP50
詳細規格
| Picture | Sockets Type | Type | Keying | Outer Shell | Contact Type | Pin Counts | Collet | nut Colour | Fitting | Part No |
|---|---|---|---|---|---|---|---|---|---|---|
 |

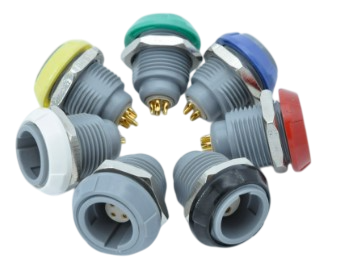

Fixed Socket | 1P Standard | G/A/B/C/H/J | Grey PSU | Female(Solder) | 2~14 | ― | G/A/J/N/R/V/B | ― | 613012-**A8** |
 |
Free Socket | 1P Standard | G/A/B/C/H/J | Grey PSU | Female(Solder) | 2~14 | 20/39/52/66 | G/A/J/N/R/V/B | ― | 613017-**B8** |
 |
Fixed Socket | 2P Standard | B/C/D/H/J | Grey PSU | Female(Solder) | 2~34 | ― | G/A/J/N/R/V | ― | 613022-**A8** |
 |

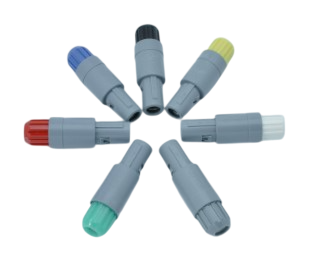

Straight Plug | 1P Standard | G/A/B/C/H/J | Grey PSU | Male(Solder) | 2~14 | 20/39/52/65 | G/A/J/N/R/V/B | ― | 613010-**A0** |
 |
Straight Plug | 2P Standard | B/C/D/H/J | Grey PSU | Male(Solder) | 2~34 | 52/72/92 | G/A/J/N/R/V/B | YES | 613020-**A0** |
